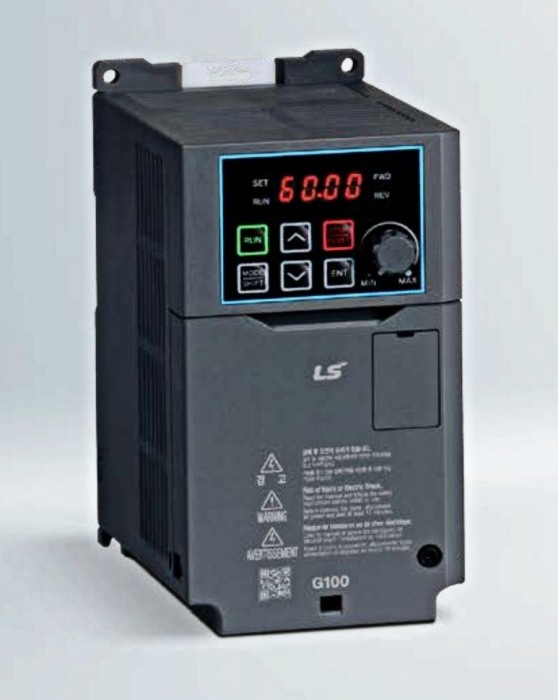

Convertizor de frecventa - G100, 3x380-480Vac, 0.75kW - 2.5A HD, 1.5kW - 3.1A ND, IP20, LED Keypad, Built-in DB, EMC filter C3 - LG LV0008G100-4EOFN
LS![Convertizor de frecventa - G100, 3x380-480Vac, 0.75kW - 2.5A HD, 1.5kW - 3.1A ND, IP20, LED Keypad, Built-in DB, EMC filter C3 - LG LV0008G100-4EOFN [1]](https://gomagcdn.ro/domains2/airguru.ro/files/product/original/convertizor-de-frecventa-g100-3x380-480vac-0-75kw-2-5a-hd-1-5kw-3-1a-nd-ip20-led-keypad-built-in-db-emc-filter-c3-lg-lv0008g100-4eofn-512871.jpg "Convertizor de frecventa - G100, 3x380-480Vac, 0.75kW - 2.5A HD, 1.5kW - 3.1A ND, IP20, LED Keypad, Built-in DB, EMC filter C3 - LG LV0008G100-4EOFN [1]")
Garanţie: 12 luni
Product Code:
HC11131
Do you need help?
0215553609
/
0753 192222
- Description
- Characteristics
- Download (1)
- Reviews (0)
Seria G100 - Convertizoare de frecventa utilizate in aplicatii industriale pentru reglajul motoarelor trifazate care actioneaza ventilatoare / pompe, precum si pentru elevatoare, conveioare, compresoare.
Caracteristici:
Fiabilitate sporita: Built-in EMC Filter, Reinforced Material Design,
Performate superioare: Application Adaptability (Heavy Duty / Normal Duty), Enhanced V/F Performance, More Powerful Sensorless Control function,
Confort in utilizare: Instalare, utilizare si intretinere usoara, Built-in Potentiometer, DIN rail Mountable, Output 2 Relays, Quick Parameter Setting Group, Various Communication Options (ModBus, Profibus-DP, CANopen, 2 Port EtherNet/IP), SMART Copier connection
Control: V/F, Slip Compensation, Sensorless Vector Frequency Setting
Functii: PID control, 3-wire operation, Frequency limit, Second function, Anti-forward and reverse direction rotation, Commercial transition, Speed search, Power braking, Leakage reduction, Up-down operation, DC braking, Frequency jump, Slip compensation, Automatic restart, Automatic tuning, Energy buffering, Flux braking, Fire mode
Tensiune intrare: 400 V/3 ph - 50 Hz.
Tensiune iesire: 400 V/3 ph - max.400 Hz.
​Grad de protectie: IP20.
​Domeniu de functionare: temperatura cuprinsa intre -10 ... +50 C, umiditate relativa max.95%.
Convertizor / Intrare - Iesire: 3 x 400 VAC - 3 x 400 VAC
Amperaj: 2.1 - 5 A
Detalii:
-
Fisa tehnica_G100
Download
