Ventilator Axial de Tubulatura - Sodeca - HPX/SEC-80-4T-4 IE3 - 1006255 - 32000 mc/h
Sodeca - Spania![Ventilator Axial de Tubulatura - Sodeca - HPX/SEC-80-4T-4 IE3 - 1006255 - 32000 mc/h [1]](https://gomagcdn.ro/domains2/airguru.ro/files/product/original/ventilator-axial-de-tubulatura-sodeca-hpx-sec-80-4t-4-ie3-1006255-32000-mc-h-822502.jpg "Ventilator Axial de Tubulatura - Sodeca - HPX/SEC-80-4T-4 IE3 - 1006255 - 32000 mc/h [1]")
![Ventilator Axial de Tubulatura - Sodeca - HPX/SEC-80-4T-4 IE3 - 1006255 - 32000 mc/h [2]](https://gomagcdn.ro/domains2/airguru.ro/files/product/original/ventilator-axial-de-tubulatura-sodeca-hpx-sec-80-4t-4-ie3-1006255-32000-mc-h-460604.jpg "Ventilator Axial de Tubulatura - Sodeca - HPX/SEC-80-4T-4 IE3 - 1006255 - 32000 mc/h [2]")
![Ventilator Axial de Tubulatura - Sodeca - HPX/SEC-80-4T-4 IE3 - 1006255 - 32000 mc/h [3]](https://gomagcdn.ro/domains2/airguru.ro/files/product/original/ventilator-axial-de-tubulatura-sodeca-hpx-sec-80-4t-4-ie3-1006255-32000-mc-h-066068.jpg "Ventilator Axial de Tubulatura - Sodeca - HPX/SEC-80-4T-4 IE3 - 1006255 - 32000 mc/h [3]")
![Ventilator Axial de Tubulatura - Sodeca - HPX/SEC-80-4T-4 IE3 - 1006255 - 32000 mc/h [0]](https://gomagcdn.ro/domains2/airguru.ro/files/product/medium/ventilator-axial-de-tubulatura-sodeca-hpx-sec-80-4t-4-ie3-1006255-32000-mc-h-822502.jpg "Ventilator Axial de Tubulatura - Sodeca - HPX/SEC-80-4T-4 IE3 - 1006255 - 32000 mc/h [0]")
![Ventilator Axial de Tubulatura - Sodeca - HPX/SEC-80-4T-4 IE3 - 1006255 - 32000 mc/h [1]](https://gomagcdn.ro/domains2/airguru.ro/files/product/medium/ventilator-axial-de-tubulatura-sodeca-hpx-sec-80-4t-4-ie3-1006255-32000-mc-h-460604.jpg "Ventilator Axial de Tubulatura - Sodeca - HPX/SEC-80-4T-4 IE3 - 1006255 - 32000 mc/h [1]")
![Ventilator Axial de Tubulatura - Sodeca - HPX/SEC-80-4T-4 IE3 - 1006255 - 32000 mc/h [2]](https://gomagcdn.ro/domains2/airguru.ro/files/product/medium/ventilator-axial-de-tubulatura-sodeca-hpx-sec-80-4t-4-ie3-1006255-32000-mc-h-066068.jpg "Ventilator Axial de Tubulatura - Sodeca - HPX/SEC-80-4T-4 IE3 - 1006255 - 32000 mc/h [2]")
Garanţie: 12 luni
- Description
- Characteristics
- Download (1)
- Reviews (0)
Seria HPX SEC - Ventilator Axial de Tubulatura, utilizate pentru diverse aplicatii industriale special concepute pentru conditi de lucru extreme.
Elicea este confectionata din aluminiu. Debite cuprinse intre 17500 si 68 000 mc/h. Ventilatorul are carcasa din tabla de otel
Motor:
- Motoare clasa F cu rulmenti cu bile, protectie IP55;
- Monofazice 230/50Hz ,
- Trifazice 230/400 -50Hz (up to 5.5 Cv) - 400/690 -50Hz (over 5.5CV)
- Temperatura de lucru: -25ºC.+ 150ºC.
- Dotat cu motor exterior
Finisaj:
- Finisate Anticoroziv rezistente la caldura

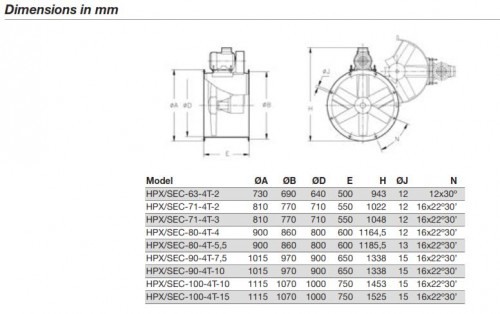

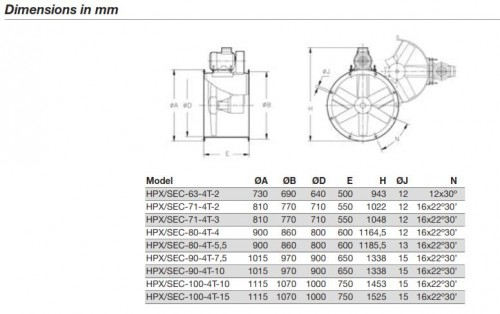

Diametru ( mm ): 800
Debit aer (mc/h): Intre 30001-40000
Alimentare electrica (V/Hz): 400V/50Hz
Rotatii/minut: 1350
Greutate (Kg): 107
Detalii:
-
Ventilator Axial de Tubulatura Sodeca HPX-SEC
