Garanţie: 12 luni
- Descriere
- Caracteristici
- Download (1)
- Review-uri (0)
Seria HBA - Ventilator de tubulatura tip Forked
Ventilatorul are carcasa lunga din otel, iar elicea este turnata din aluminiu, cu debite cuprinse intre 2900 si 21 700 mc/h.
Motor:
- Motoare clasa F cu rulmenti cu bile, protectie IP55;
- Trifazice 230/400 - 50Hz ( pana in 5.5 CV ) si 400/690 - 50Hz ( peste 5.5 CV )
- Temperatura de lucru: -25ºC.+ 150ºC. - sporadic 200 C
- Motorul electric se afla in afara fluxului de aer
Finisaj:
- Finisate Anticoroziv anticoroziv pentru lucrul in medii cu temperatura inalta

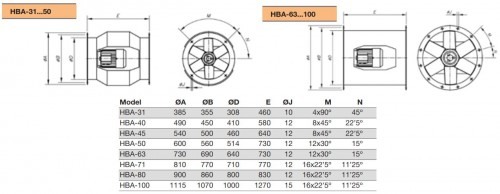

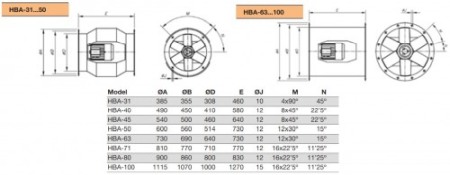

Diametru ( mm ): 400
Debit aer (mc/h): Intre 5001-10000
Alimentare electrica (V/Hz): 400V/50Hz
Rotatii/minut: 2860
Greutate (Kg): 45
Detalii:
-
Ventilatoare IN-LINE de tubulatura HBA
