Garanţie: 12 luni
- Descriere
- Caracteristici
- Download (1)
- Review-uri (0)

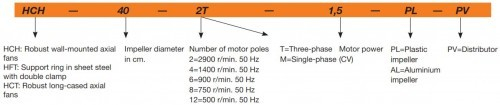

Ventilatoare Axiale cu debite cuprinse intre 980 si 72 000 mc/h. Modelele
Versiune PL - rotor din Plastic | Versiune AL - rotor din Aluminiu
Motor:
- Motoare clasa F cu rulmenti cu bile, protectie IP55; cu exceptia versiunilor monofazice de la dimensiuena 45 pana la 56 ( IP 54 )
- Trei faze 230/400V.-50Hz ( pana la 5.5CV ) , 400/690V.-50Hz . ( putere peste 5.5CV . )
- Temperatura de lucru: -25ºC.+ 50ºC.
- Motoare cu doua viteze monofazate eficienta IE - 2 , cu exceptia motoarelor mai mici de 0,75 kW
Finisaj:
- Carcasa din otel
- Anticoroziv realizat prin polimerizare in rasina de poliester la 190 gr.C, dupa degresare alcalina si pretratarea cu fosfati.

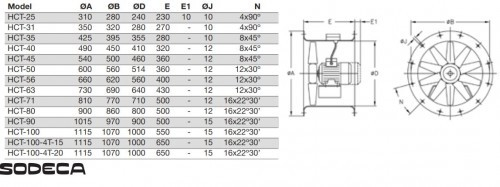

Diametru ( mm ): 800
Debit aer (mc/h): Intre 20001-30000
Alimentare electrica (V/Hz): 400V/50Hz
Rotatii/minut: 955
Greutate (Kg): 71
Detalii:
-
Ventilatoare Axiale de Tubulatura HCT
Descarca
